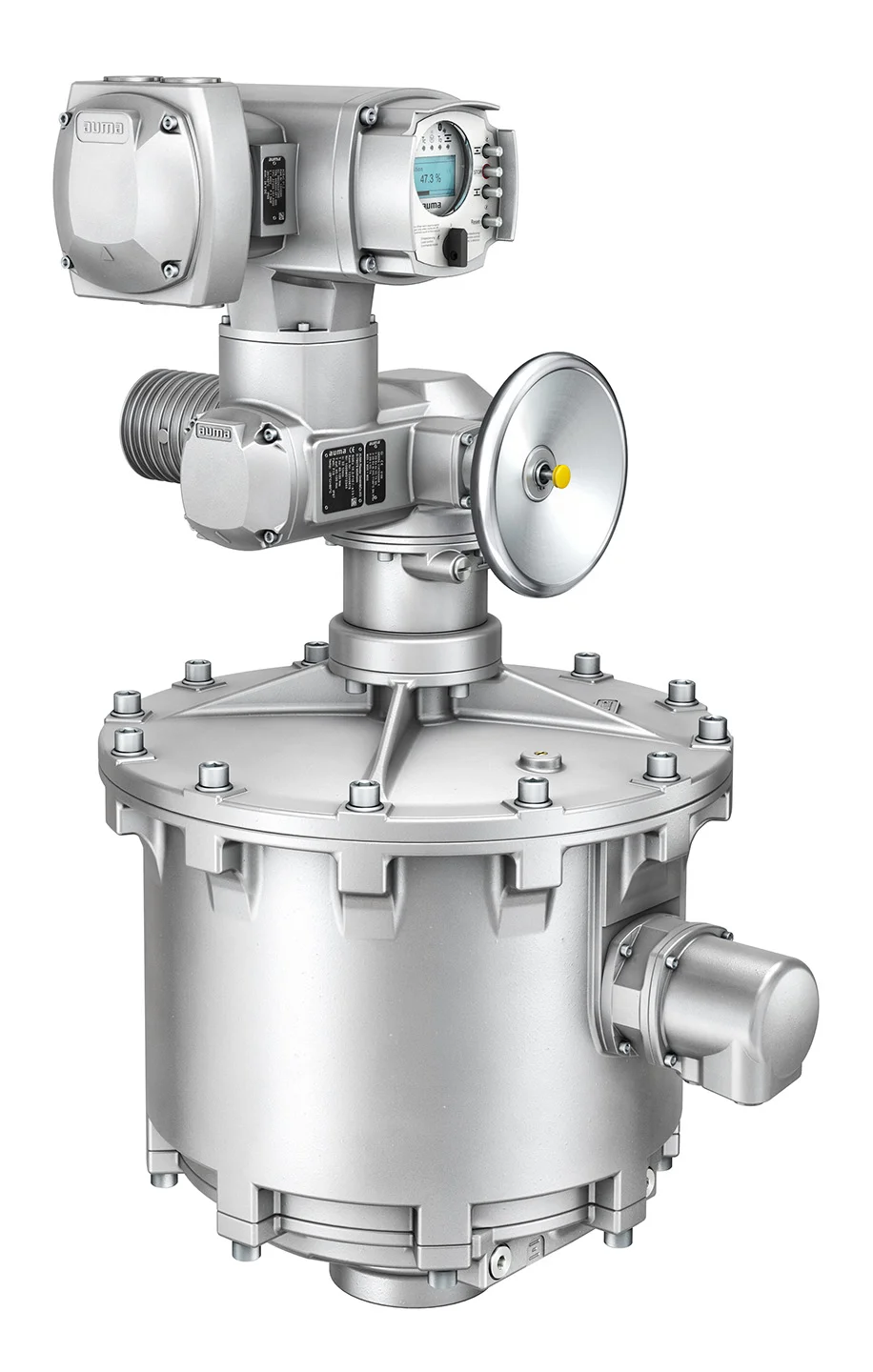

AUMA SQ/SQR Spare Parts
AUMA SQ actuators, known for their versatile open-close duty and positioning capabilities, have a notable torque range from 50 Nm to 2,400 Nm and offer operating time ranges for 90° swings from 4 seconds to 100 seconds. With swing angles from 75° to 105°, integrated limit and torque seating, along with 3-ph AC and 1-ph AC motors, these AUMA actuator parts are primed to boost your operations. Our mission is to provide you with the best AUMA SQ/SQR spare parts to ensure the long-lasting performance and reliability of your AUMA actuators.
Spare parts list | Part-turn actuators | AUMA NORM
SQ 05.2 – SQ 14.2 S | SQR 05.2 – SQR 14.2 S
Spare parts list
Part-turn actuators
SQ 05.2 – SQ 14.2 S
SQR 05.2 – SQR 14.2 S
Zoom In
Mouse over the image to zoom

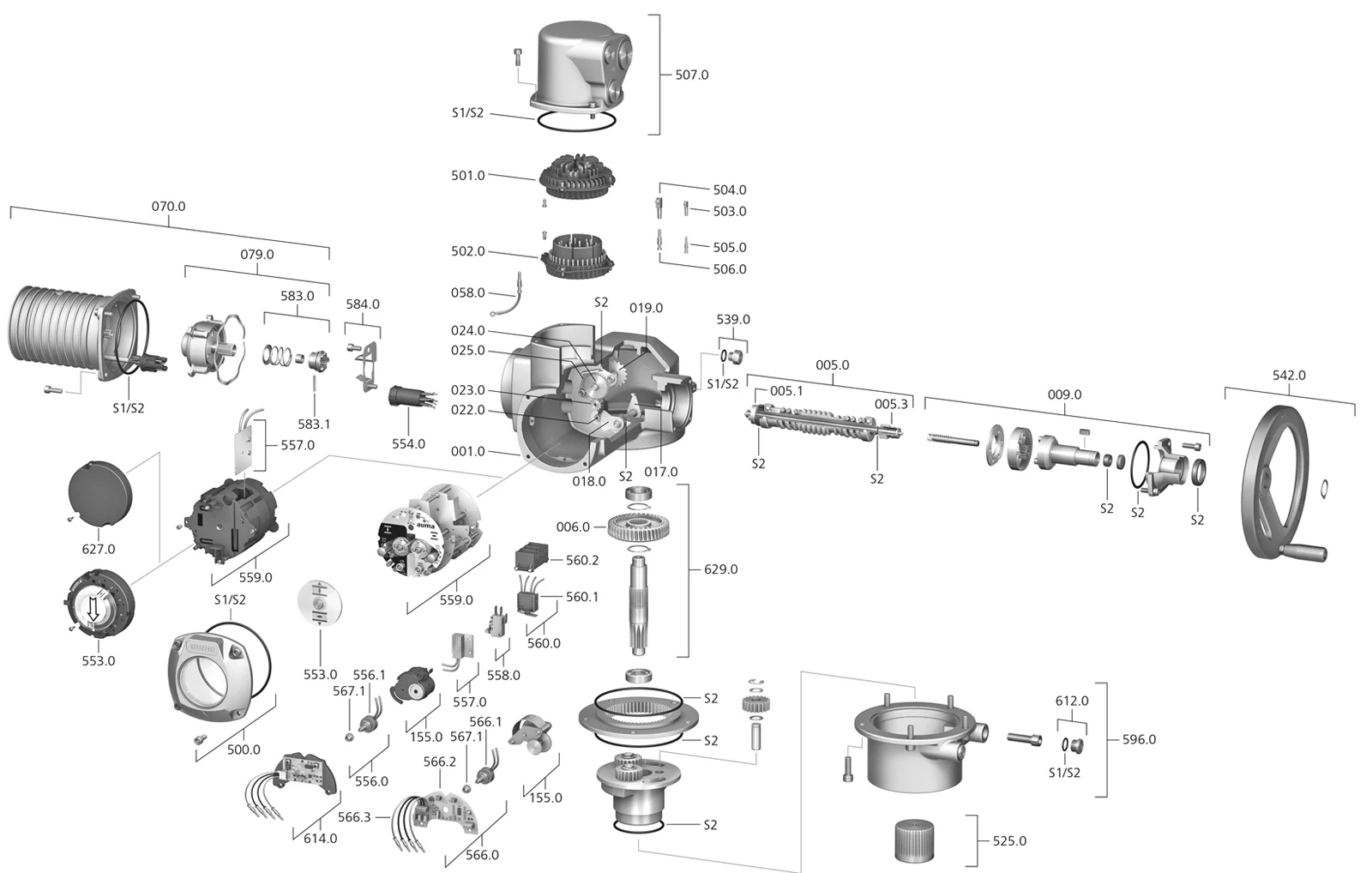

SQ 05.2 – SQ 14.2 S | SQR 05.2 – SQR 14.2 S part-turn actuator spare parts list
| Image Ref No | Description | Type |
|---|---|---|
| 001.0 | Housing | Sub-assembly |
| 005.0 | Drive shaft | Sub-assembly |
| 005.1 | Motor coupling | Sub-assembly |
| 005.3 | Manual drive coupling | |
| 006.0 | Worm wheel | Sub-assembly |
| 009.0 | Manual gearing | Sub-assembly |
| 017.0 | Torque lever | |
| 018.0 | Gear segment | Sub-assembly |
| 019.0 | Crown wheel | |
| 022.0 | Drive pinion II for torque switching | Sub-assembly |
| 023.0 | Output drive wheel for limit switching | Sub-assembly |
| 024.0 | Drive wheel for limit switching | Sub-assembly |
| 025.0 | Locking plate | Sub-assembly |
| 058.0 | Cable for protective earth | Sub-assembly |
| 070.0 | Motor (incl. ref. no. 079.0) | Sub-assembly |
| 079.0 | Planetary gearing for motor drive | Sub-assembly |
| 155.0 | Reduction gearing | Sub-assembly |
| 500.0 | Cover | Sub-assembly |
| 501.0 | Socket carrier (complete with sockets) | Sub-assembly |
| 502.0 | Pin carrier without pins | Sub-assembly |
| 503.0 | Socket for controls | Sub-assembly |
| 504.0 | Socket for motor | |
| 505.0 | Pin for controls | Sub-assembly |
| 506.0 | Pin for motor | Sub-assembly |
| 507.0 | Cover for electrical connection | Sub-assembly |
| 525.0 | Coupling | Sub-assembly |
| 539.0 | Screw plug | Sub-assembly |
| 542.0 | Handwheel with ball handle | |
| 553.0 | Mechanical position indicator | Sub-assembly |
| 554.0 | Socket carrier for motor plug/socket connect-or with cable harness | Sub-assembly |
| Image Ref No | Description | Type |
|---|---|---|
| 556.0 | Potentiometer as position transmitter | Sub-assembly |
| 556.1 | Potentiometer without slip clutch | Sub-assembly |
| 557.0 | Heater | Sub-assembly |
| 558.0 | Blinker transmitter including pins at wires (without impulse disc and insulation plate) | Sub-assembly |
| 559.0–1 | Electromechanical control unit with switches, including torque switching heads | Sub-assembly |
| 559.0–2 | Electronic control unit with magnetic limit and torque transmitter (MWG) | Sub-assembly |
| 560.0–1 | Switch stack for direction OPEN | Sub-assembly |
| 560.0–2 | Switch stack for direction CLOSE | Sub-assembly |
| 560.1 | Switch for limit/torque | Sub-assembly |
| 560.2–1 | Switch case for direction OPEN | |
| 560.2–2 | Switch case for direction CLOSE | |
| 566.0 | RWG position transmitter | Sub-assembly |
| 566.1 | Potentiometer for RWG without slip clutch | Sub-assembly |
| 566.2 | Position transmitter board for RWG | Sub-assembly |
| 566.3 | Cable set for RWG | Sub-assembly |
| 567.1 | Slip clutch for potentiometer | Sub-assembly |
| 583.0 | Motor coupling on motor shaft | Sub-assembly |
| 583.1 | Pin for motor coupling | Sub-assembly |
| 584.0 | Retaining spring for motor coupling | |
| 596.0 | Output drive flange with end stop | Sub-assembly |
| 612.0 | Screw plug for end stop | Sub-assembly |
| 614.0 | EWG position transmitter | Sub-assembly |
| 627.0 | MWG 05.03 cover | |
| 629.0 | Pinion shaft | Sub-assembly |
| S1 | Seal kit, small | Set |
| S2 | Seal kit, large | Set |
Please state device type and our order number (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts ProActuator from any liability. Representation of spare parts may slightly vary from actual delivery.
Extend the lifespan of your system with AUMA SQ/SQR spare parts
Stepping into the realm of the SQR series, these modulating actuators are renowned for their excellent durability and operational capacity, managing a staggering 1,500 starts per hour. The torque range for SQR actuators spans from 50 Nm to 2,400 Nm, and they offer a modulating torque from 75 Nm to 1,200 Nm. All these impressive specifications are complemented by limit and torque seating, a handwheel for manual operation, and again, that highly useful mechanical position indicator.
Remember, maintaining your actuators with high-quality parts is a strategic investment in the longevity and productivity of your business.
