Spare parts list | Multi-turn actuators | AUMA NORM

SA 07.1 – SA 16.1   |   SAR 07.1 – SAR 16.1

AUMA logo 1
slider image

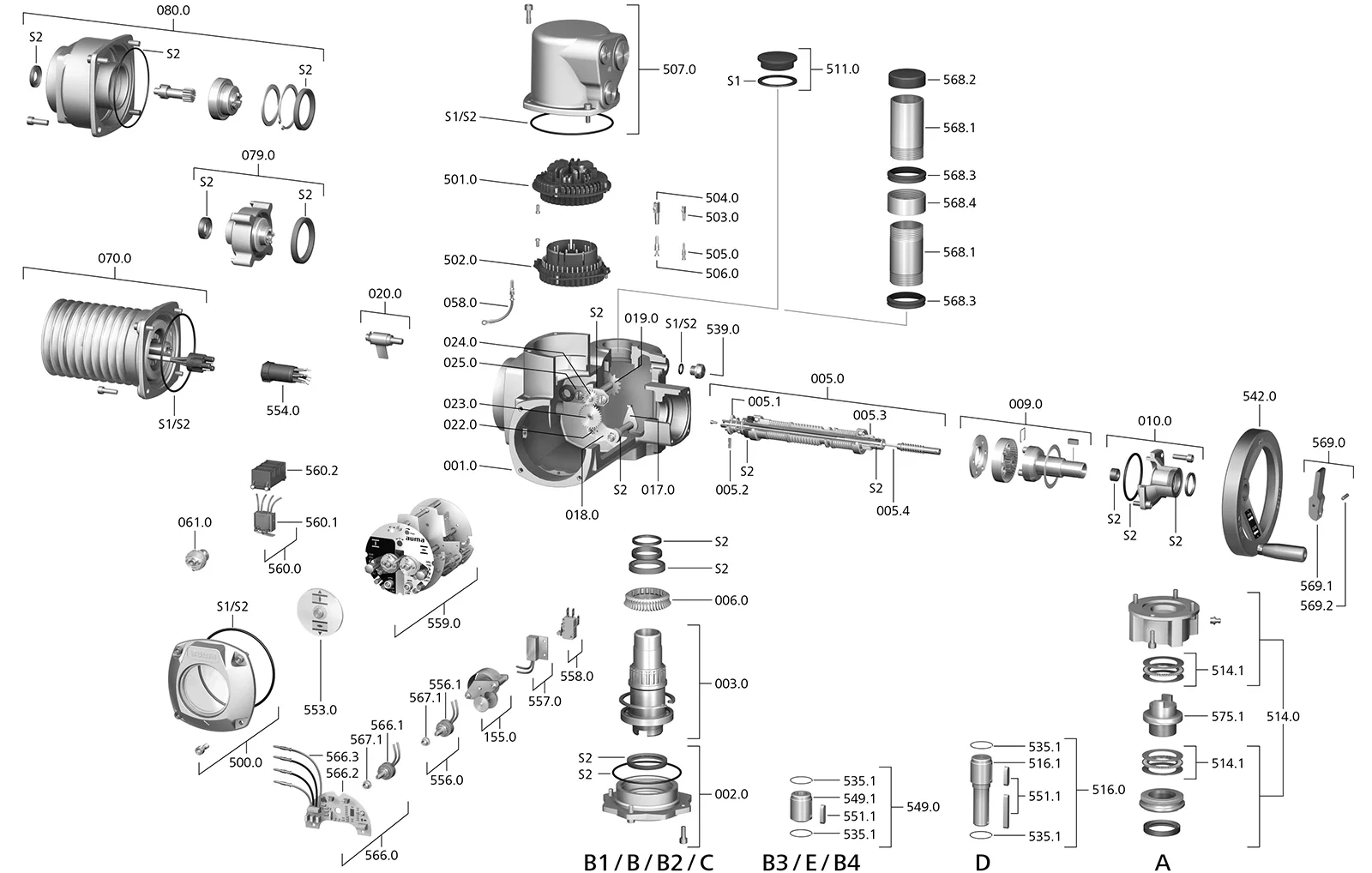

Exploded view

Multi-turn actuators
SA 07.1 – SA 16.1
SAR 07.1 – SAR 16.1

Zoom In

Mouse over the image to zoom

AUMA SA 07.1 – SA 16.1  |  SAR 07.1 – SAR 16.1 multi-turn actuator spare parts list

Image Ref NoDescriptionType
001.0HousingSub-assembly
002.0Bearing flangeSub-assembly
003.0Output drive type B1/B/B2/CSub-assembly
005.0Drive shaftSub-assembly
005.1Motor coupling
005.2Coupling pin
005.3Manual drive coupling
005.4Pull rope
006.0Worm wheel
009.0Manual gearingSub-assembly
010.0Retaining flangeSub-assembly
017.0Torque leverSub-assembly
018.0Gear segment
019.0Crown wheelSub-assembly
020.0Swing leverSub-assembly
022.0Drive pinion II for torque switchingSub-assembly
023.0Output drive wheel for limit switchingSub-assembly
024.0Drive wheel for limit switchingSub-assembly
025.0Locking plateSub-assembly
058.0Cable for protective earthSub-assembly
061.0Torque switching headSub-assembly
070.0Motor (only for V… motors incl. ref. no. 079.0)Sub-assembly
079.0Planetary gearing for motor drive (SA/SAR 07.1 – 14.1 for V … motors)Sub-assembly
080.0Planetary gearing for motor drive (SA/SAR 16.1 for A …. motors)Sub-assembly
155.0Reduction gearingSub-assembly
500.0CoverSub-assembly
501.0Socket carrier (complete with sockets)Sub-assembly
502.0Pin carrier without pinsSub-assembly
503.0Socket for controlsSub-assembly
504.0Socket for motorSub-assembly
505.0Pin for controlsSub-assembly
506.0Pin for motorSub-assembly
507.0Cover for electrical connectionSub-assembly
511.0Threaded plugSub-assembly
514.0Output drive type A (without stem nut)Sub-assembly

Image Ref NoDescriptionType
514.1Axial needle roller bearingSub-assembly
516.0Output drive type DSub-assembly
516.1Output drive shaft D
535.1Snap ring
539.0Screw plug
542.0Handwheel with ball handleSub-assembly
549.0Output drive type B3/E/B4Sub-assembly
549.1Output drive sleeve B3/E/B4
551.1Parallel key
553.0Mechanical position indicatorSub-assembly
554.0Socket carrier for motor plug/socket connect or with cable harnessSub-assembly
556.0Potentiometer as position transmitterSub-assembly
556.1Potentiometer without slip clutchSub-assembly
557.0HeaterSub-assembly
558.0Blinker transmitter including pins at wires (without impulse disc and insulation plate)Sub-assembly
559.0Electromechanical control unit with switches, including torque switching headsSub-assembly
560.0-1Switch stack for direction OPENSub-assembly
560.0-2Switch stack for direction CLOSESub-assembly
560.1Switch for limit/torque
560.2Switch case
566.0RWG position transmitterSub-assembly
566.1Potentiometer for RWG without slip clutchSub-assembly
566.2Position transmitter board for RWGSub-assembly
566.3Cable set for RWGSub-assembly
567.1Slip clutch for potentiometerSub-assembly
568.1Stem protection tube (without cap)
568.2Protective cap for stem protection tube
568.3V-seal
568.4Threaded sleeve
569.0Change-over lever assy
569.1Change-over lever
569.2Notched pin
575.1Stem nut A (without thread)
S1Seal kit, smallSet
S2Seal kit, largeSet

Please state device type and our order number (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts ProActuator from any liability. Representation of spare parts may slightly vary from actual delivery.

Need AUMA Original Spare Parts?

Do you need original AUMA spare parts? Just write to us!
Ask for AUMA spare parts
Spare parts list | Multi-turn actuators | AUMA NORM

SA 25.1 – SA 48.1 S  |  SAR 25.1 – SAR 30.1 S

AUMA logo 1

slider image

Spare parts list

Multi-turn actuators
SA 25.1 – SA 48.1 S
SAR 25.1 – SAR 30.1 S

Zoom In

Mouse over the image to zoom

AUMA SA 25.1 – SA 48.1 S  |  SAR 25.1 – SAR 30.1 S multi-turn actuator spare parts list

Image Ref NoDescriptionType
001.0Former housing (for bearing bush 600.0)Sub-assembly
001.0New housing (for ball bearing 635.0)Sub-assembly
002.0Bearing flangeSub-assembly
003.0Former hollow shaft (for bearing bush 600.0)Sub-assembly
003.0New hollow shaft (for ball bearing 635.0)Sub-assembly
005.0Drive shaft
005.1Motor coupling
005.2Coupling pinSub-assembly
005.3Manual drive coupling
005.4Pull ropeSub-assembly
006.0Worm wheel
009.0Manual gearingSub-assembly
017.0Torque leverSub-assembly
018.0Drive wheel for limit switching
019.0Crown wheel
020.0Swing lever
022.0Drive pinion II for torque switching
023.0Output drive wheel for limit switchingSub-assembly
024.0Drive wheel for limit switchingSub-assembly
025.0Locking plateSub-assembly
058.0Cable for protective earthSub-assembly
070.0MotorSub-assembly
080.0Planetary gearing for motor drive (for A…motor)Sub-assembly
155.0Reduction gearingSub-assembly
500.0CoverSub-assembly
501.0Socket carrier (complete with sockets)Sub-assembly
502.0Pin carrier without pinsSub-assembly
503.0Socket for controlsSub-assembly
504.0Socket for motorSub-assembly
505.0Pin for controlsSub-assembly
506.0Pin for motorSub-assembly
507.0Cover for electrical connectionSub-assembly
511.0Threaded plugSub-assembly
514.0Output drive type A (without stem nut)Sub-assembly
514.1Axial needle roller bearingSub-assembly
514.2Radial seal for output drive type A
516.0Output drive type DSub-assembly
516.1Output drive shaft DSub-assembly
535.1Snap ring

Image Ref NoDescriptionType
539.0Screw plug
542.0Handwheel with ball handleSub-assembly
549.0Output drive type B3/E/B4Sub-assembly
549.1Output drive sleeve B3/E/B4Sub-assembly
551.1Parallel key
553.0Mechanical position indicator
556.0Potentiometer as position transmitterSub-assembly
556.1Potentiometer without slip clutchSub-assembly
557.0Heater
558.0Blinker transmitter including pins at wires without impulse disc and insulation plate)Sub-assembly
559.0–1Electromechanical control unit with switches, including torque switching headsSub-assembly
559.0–2Electronic control unit with magnetic limit and torque transmitter (MWG)Sub-assembly
560.0–1Switch stack for direction OPENSub-assembly
560.0-2Switch stack for direction CLOSESub-assembly
560.1Switch for limit/torqueSub-assembly
560.2–1Switch case for direction OPEN
560.2-2Switch case for direction CLOSE
566.0RWG position transmitterSub-assembly
566.1Potentiometer for RWG without slip clutch
566.2Position transmitter board for RWGSub-assembly
566.3Cable set for RWGSub-assembly
567.1Slip clutch for potentiometer
568.1Stem protection tube (without cap)
568.2Protective cap for stem protection tube
568.3V-seal
568.4Threaded sleeve (for SA/SAR 25.1 and 30.1)
569.0Change-over lever assySub-assembly
569.1Change-over lever
569.2Notched pin
575.1Stem nut (without thread)
600.0Bearing bush (for former housing)
602.0Reduction frame
603.0Motor connectionSub-assembly
614.0EWG position transmitterSub-assembly
627.0MWG 05.03 cover
634.0Shim washer (for new housing)
635.0Ball bearing (for new housing)
S1Seal kit, smallSet
S2Seal kit, largeSet

Please state device type and our order number (see name plate) when ordering spare parts. Only original AUMA spare parts should be used. Failure to use original spare parts voids the warranty and exempts ProActuator from any liability. Representation of spare parts may slightly vary from actual delivery.
